40KN hydraulic cable/conductor puller for overhead transimission line aerial bundled line stringing construction manufacturers and suppliers in China

40KN hydraulic cable/conductor puller for overhead transimission line aerial bundled line stringing construction Admin Edit

50933.0~101866.0 USD

Model:	YL-YQ40
Min. Order:	1 Set/Sets
Trade Term:	FOB
Payment Terms:	L/C, T/T
Place of Origin:	Zhejiang, China (Mainland)
Means of Transport:	Ocean

Production Capacity:	5	Packing:	Carton
Delivery Date:	Strong production...	Brand Name:	Yongli
Dimensions (mm):	3500×2000×2300	Engine power /speed (kW/rpm):	60 /2000

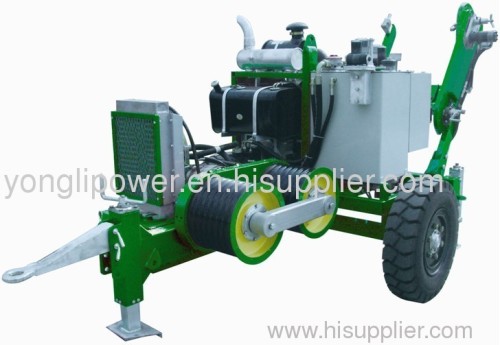

40KN hydraulic cable/conductor puller for overhead transimission line aerial bundled line stringing construction

Order number: 10347

Product name: YL-YQ40

Essential parameter

Maximum linepull (kN): 40

Continuous linepull (kN): 35

Maximum linespeed (km/h): 5

Bullwheel bottom of groove diameter(mm) : Φ400

Bullwheel grooves number : 7

Maximum suitable steelrope diameter (mm): Φ16

Maximum through connector diameter (mm): Φ50

Engine power /speed (kW/rpm): 60/2000

Dimensions (mm): 3500×2000×2300

Weight (kg): 2500

Feature :

1.Infinitely variable speed and linepull control ,the pull in the rope can be read on the line pull gauge .

2.The max pull for conductor -stringing operation can preset ,automatic overpull protection system .

3.Spring applied –hydraulic release brake acts automatically in case of hydraulic failure ensure to safety .

4.Attached reel winder with automatically level wind .load and unload conveniently .

Main component :

1.Engine : Cummins(DONGFENG) water cooled engine.

2.Main variable pump and main motor :rexroth (BOSCH)

3.Reducer :RR (Italian)

4.Main hydraulic valve : rexroth (BOSCH)

5.Radiator : AKG

6.Hydraulic instrument :WIKA

7.Mating with model GSP1400 drum
