508mm large diameter stringing tension pulley block Admin Edit

163.0~4908.0 USD
Model: SHD .SHDN508 series
Min. Order: 1 Set/Sets
Trade Term: FOB
Payment Terms: L/C, T/T
Place of Origin: Zhejiang, China (Mainland)
Means of Transport: Ocean
Production Capacity: 50 Packing: Carton
Delivery Date: 2 weeks after receive... Brand Name: Yongli
Weight (kg): 18~93

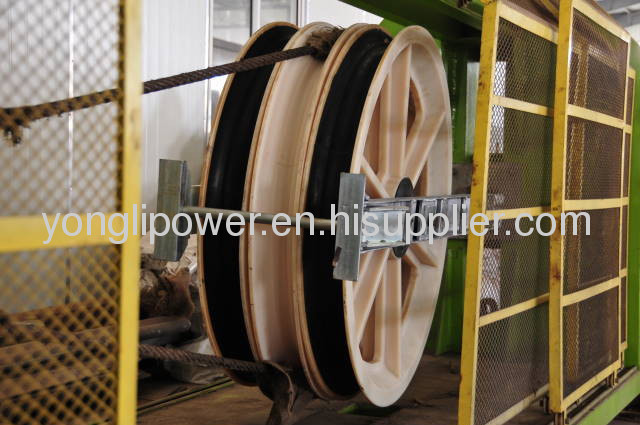

508mm large diameter stringing tension pulley block

Order number

Model

Number of wheel

Rated load(kN)

Weight (kg)

Features

10379

SHD508

1

20

18

Cemented aluminous sheave

10380

SHS508

3

40

61

Middle :cast steel sheave

Conductor: cemented

aluminous sheave

10381

SHW508

5

60

93

10382

SHDN508

1

20

16

MC nylon sheave

10383

SHSLN508

3

40

47

Middle :MC nylon sheave

Conductor: cemented aluminous wheel

10384

SHWLN508

5

60

79

10385

SHSQN508

3

40

43

MC nylon sheave

10386

SHWQN508

5

60

70

. Note :1

1.Maximum suitable conductor LGJ400.

2.Block dimension ( outside diameter × root diameter × sheave width) Φ508×Φ408×75(mm) .
